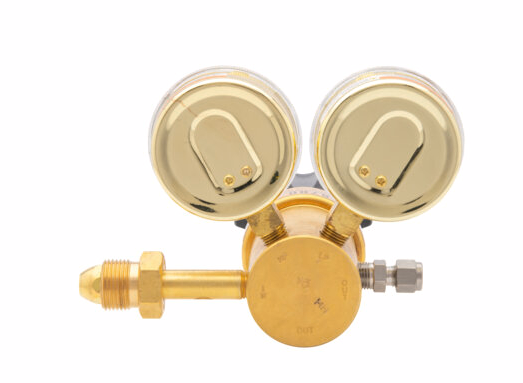

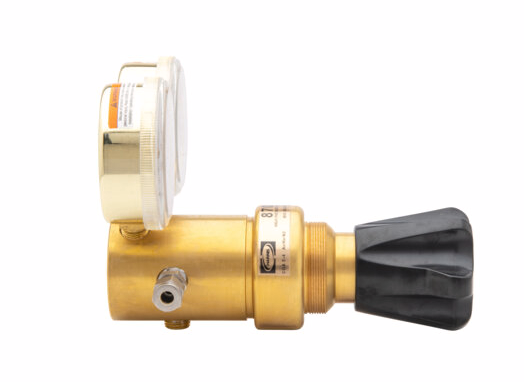

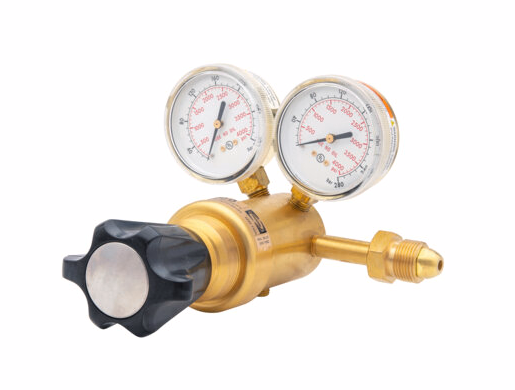

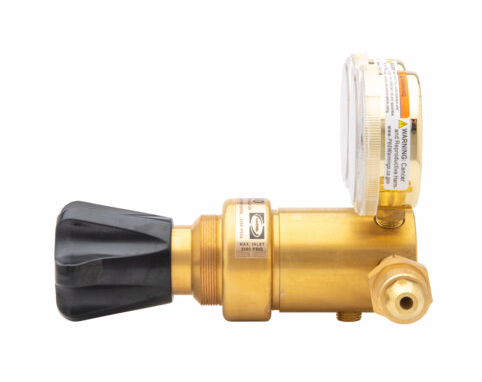

Model HP8700-1500-580 Single-Stage Pressure Regulator

Locations: In Stock Available to Order

Item Code: HAR3200300

DETAILS Model HP 8700 is a single-stage brass regulator that is designed to deliver high outlet pressures from high-pressure cylinders . The Model HP 8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a brass body, bonnet and dual scale gauges, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal 10 micron filter and PTFE seat. It has a 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting. Features Operates on high pressure cylinders up to 3000 PSIG Brass barstock body and bonnet and brass nozzle for longer service life Ergonomic ABS plastic knob for improved grip and precise adjustment 2.5 in. Brass barstock dual scale easy-to-read gauges (psi/bar) One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE seat from particulate contamination Urethane diaphragm for greater flexibility 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts Conforms to CGA E-4 standard for gas pressure regulators Self-relieving for safety

Category Inert Gas

Description

DETAILS Model HP 8700 is a single-stage brass regulator that is designed to deliver high outlet pressures from high-pressure cylinders . The Model HP 8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a brass body, bonnet and dual scale gauges, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal 10 micron filter and PTFE seat. It has a 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting. Features Operates on high pressure cylinders up to 3000 PSIG Brass barstock body and bonnet and brass nozzle for longer service life Ergonomic ABS plastic knob for improved grip and precise adjustment 2.5 in. Brass barstock dual scale easy-to-read gauges (psi/bar) One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE seat from particulate contamination Urethane diaphragm for greater flexibility 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts Conforms to CGA E-4 standard for gas pressure regulators Self-relieving for safety

Description

DETAILS Model HP 8700 is a single-stage brass regulator that is designed to deliver high outlet pressures from high-pressure cylinders . The Model HP 8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a brass body, bonnet and dual scale gauges, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal 10 micron filter and PTFE seat. It has a 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting. Features Operates on high pressure cylinders up to 3000 PSIG Brass barstock body and bonnet and brass nozzle for longer service life Ergonomic ABS plastic knob for improved grip and precise adjustment 2.5 in. Brass barstock dual scale easy-to-read gauges (psi/bar) One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE seat from particulate contamination Urethane diaphragm for greater flexibility 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts Conforms to CGA E-4 standard for gas pressure regulators Self-relieving for safety
