Starting from

CAD 2.08

- +

selection not available, try a different combination

selection not available, try a different combination

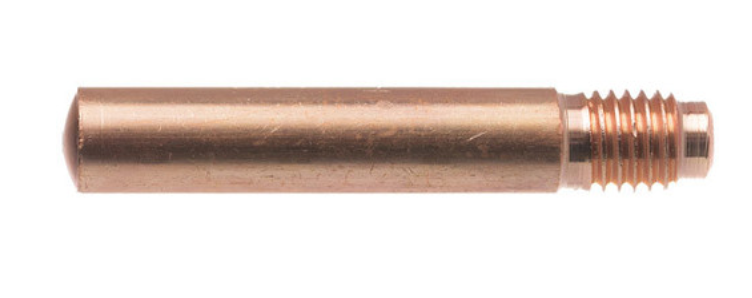

Tweco® .045" X 1.5" 0.054" Bore 14 Series Contact Tip

Locations: In Stock Available to Order

Item Code: WEM14-45

Tweco® 14 Series Standard Duty Contact Tip accommodates 0.045" wire and is perfect for use with 200 - 400 A Tweco® No.2, No.3, No.4 MIG gun as well as specific MIG gun series. Contact tip with excellent electrical properties is ideal for use in standard welding application up to 400 A. It features part number and wire diameter for easy identification. 1 1/2" Contact tip with 1/4"-28 UNF-2A thread size has 0.054" nominal ID and 1/4" OD. Contact tip is made from extruded or gun-drilled 122 DHP copper alloy and machined from a copper alloy tubing to offer a consistent as well as smooth surface of inside diameter with +/-0.003" tolerance. It has threaded style that ensures proper contact with a gas diffuser when installed to the MIG gun. It comes in slip-on or thread-on nozzle styles with a choice of diameter bore sizes. Contact tip locks in place when twisted and offers better electrical conductivity with increased surface contact. Contact tip features thick-walled design that acts like a heat sink conducting heat away from the arc source. It can be twisted quarter turn clockwise when tip wear point is reached that reveals a new wear point for doubling the life of the tip. Contact tip is sold as 25 per pack.

Category Contact Tips

Description

Tweco® 14 Series Standard Duty Contact Tip accommodates 0.045" wire and is perfect for use with 200 - 400 A Tweco® No.2, No.3, No.4 MIG gun as well as specific MIG gun series. Contact tip with excellent electrical properties is ideal for use in standard welding application up to 400 A. It features part number and wire diameter for easy identification. 1 1/2" Contact tip with 1/4"-28 UNF-2A thread size has 0.054" nominal ID and 1/4" OD. Contact tip is made from extruded or gun-drilled 122 DHP copper alloy and machined from a copper alloy tubing to offer a consistent as well as smooth surface of inside diameter with +/-0.003" tolerance. It has threaded style that ensures proper contact with a gas diffuser when installed to the MIG gun. It comes in slip-on or thread-on nozzle styles with a choice of diameter bore sizes. Contact tip locks in place when twisted and offers better electrical conductivity with increased surface contact. Contact tip features thick-walled design that acts like a heat sink conducting heat away from the arc source. It can be twisted quarter turn clockwise when tip wear point is reached that reveals a new wear point for doubling the life of the tip. Contact tip is sold as 25 per pack.

Specifications

Brand

Own Brand

Category

Simcoe Gases Inc

Country of Origin

USA

Tip Size

1.5 in

Wire Size

0.045 in

Description

Tweco® 14 Series Standard Duty Contact Tip accommodates 0.045" wire and is perfect for use with 200 - 400 A Tweco® No.2, No.3, No.4 MIG gun as well as specific MIG gun series. Contact tip with excellent electrical properties is ideal for use in standard welding application up to 400 A. It features part number and wire diameter for easy identification. 1 1/2" Contact tip with 1/4"-28 UNF-2A thread size has 0.054" nominal ID and 1/4" OD. Contact tip is made from extruded or gun-drilled 122 DHP copper alloy and machined from a copper alloy tubing to offer a consistent as well as smooth surface of inside diameter with +/-0.003" tolerance. It has threaded style that ensures proper contact with a gas diffuser when installed to the MIG gun. It comes in slip-on or thread-on nozzle styles with a choice of diameter bore sizes. Contact tip locks in place when twisted and offers better electrical conductivity with increased surface contact. Contact tip features thick-walled design that acts like a heat sink conducting heat away from the arc source. It can be twisted quarter turn clockwise when tip wear point is reached that reveals a new wear point for doubling the life of the tip. Contact tip is sold as 25 per pack.

Specifications

Brand

Own Brand

Category

Simcoe Gases Inc

Country of Origin

USA

Tip Size

1.5 in

Wire Size

0.045 in
